Setting Up Outlook 2013/ 2016 Using IMAP

Follow these steps to set up Outlook 2013 or 2016 to access your UCSD email account using Internet Message Access Protocol (IMAP).

Before you start, you need your:

  • Active Directory (AD) username and password (if you forgot your password, reset it)
  • Department's incoming mail server if you're not on the central campus mail server (mail.ucsd.edu)

Microsoft Exchange

If your e-mail account has been migrated, change the following in your e-mail client:

  • Username (full and official UCSD e-mail address): username@ucsd.edu
  • Incoming server: outlook.office365.com

Expand all

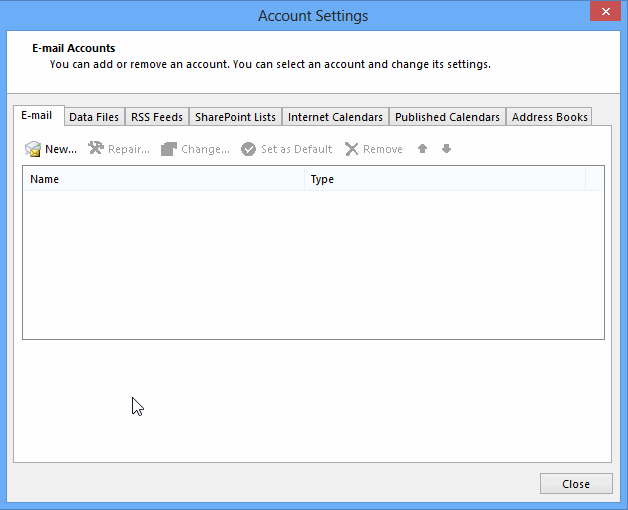

1. Open Account Settings.

  • In Outlook 2013 or 2016 go up to the upper left and click File, then go to Info - Account and Social Network Settings - Account Settings to open the Account Settings window.
  • Click the Email tab if not already selected.

    start new account

2. Setup an account.

  • Click the New... button.

    Email account settings window

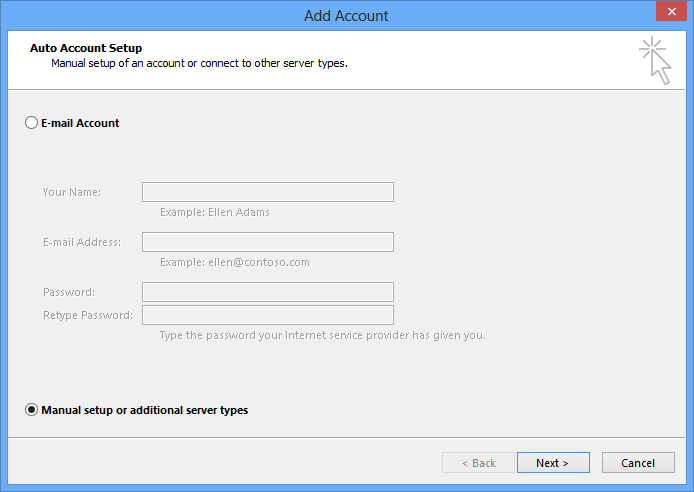

3. Auto Account Setup.

  • Select Manual setup or additional server types and click Next.

    Manual config choice screen

4. Choose an email Service.

  • Select POP or IMAP and then click Next in the Add Account window.

    Type of account - Pop/IMAP

5. Enter your Internet email settings.

  • Enter the following in each field:
    • Your Name: your full name, including spaces and capitalization
    • Email address: your entire @ucsd.edu email address
    • Account Type: IMAP
    • Incoming mail server: mail.ucsd.edu
    • Outgoing mail server:
      • If you connect via the on-campus UCSD network, enter smtp.ucsd.edu
      • If you connect via a non-UCSD Internet Service Provider (ISP) and you don't have a mail.ucsd.edu account, use your ISP's outgoing mail server.
    • User Name: your AD username (the part of your UCSD email address before the @ symbol)
    • Password: optional
      • If you enter your AD password and check the Remember password box, Outlook will not request it each time you log on.
      • If others use your computer, it's safer to enter your password each time you check mail. You need your password if you make changes or reinstall Outlook.
  • Select More Settings ...
  • Manual server config

6. Internet email settings - Advanced.

  • Click the Advanced tab.
  • Select SSL from the drop-down menu for Use the following type of encrypted connection under Incoming Server (IMAP). The port number will change from 143 to 993.
  • Select SSL from the drop-down menu for Use the following type of encrypted connection under Outgoing Server (SMTP).
  • Enter 465 in the outgoing server (SMTP) field.
  • SSL and port config

7. Internet email settings - Outgoing Server.

  • Click the Outgoing Server tab in the Internet Email Settings window.
  • Check My outgoing server (SMTP) requires authentication.
  • Select Log on using and enter your Active DirectoryUser Name and Password.
  • Select OK and Next

    Outgoing server config

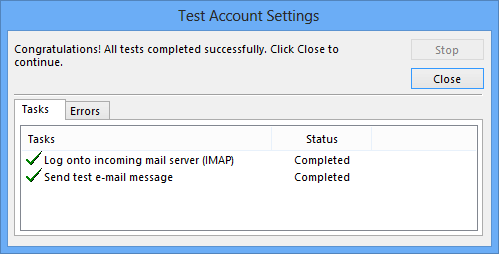

8. Test Account Settings.

  • Once Log onto incoming mail server (IMAP) and Send test email message tests are completed, click Close.
  • Click Finish

    Test account settings

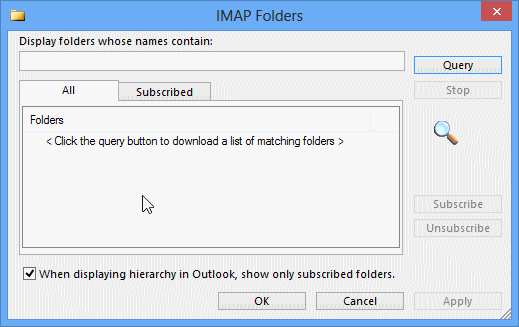

9. Subscribing to Folders.

  • Right click on Inbox folder and select IMAP Folders...
  • Select Query
  • From the list, select the folders you would like to subscribe to, then select Subscribe
  • Select OK
    Subscribe to IMAP folders

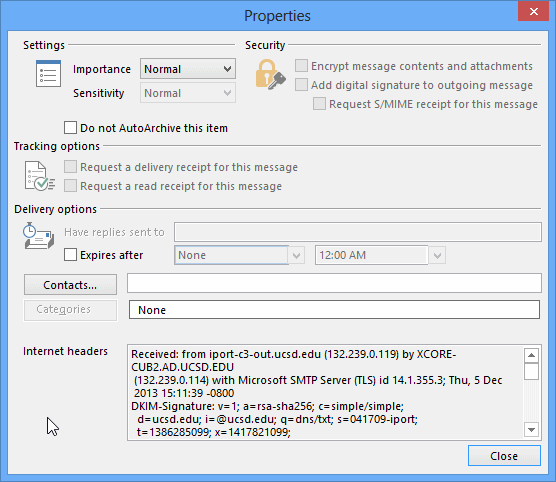

10. View the headers of a message.

  • Double click on the email you'd like to view the headers for
  • When the email opens in a new window, select File
  • Under Info, select Properties
  • Message headers
