Kaltura Capture

Kaltura Capture is an application that allows you to record your screen, camera, and microphone, and has some unique affordances when the video is watched. Learn more about it below.

Kaltura is the video delivery service with whom UCSD has partnered to provide easy-to-use video and desktop capture capabilities and is responsible for displaying any and all media within Canvas.

Summary
Recording with Kaltura Capture Using Kaltura Capture Annotations
Why You Might Do This
  • You don't have your own capture software
  • You want to capture 2 video sources (e.g. your screen and your camera)
  • You want to be able to annotate during your recording (draw onscreen, etc.)
  • You want to take advantage of the Kaltura video player's ability to allow students to choose how to arrange the video sources onscreen
  • Recordings are automatically uploaded to "My Media" and are preserved indefinitely
  • You want to direct students' attention to particular parts of your screen or presentation
  • You don't have a document camera and you want to draw or write (e.g. to solve problems during your recording)
Prerequisites System requirements
  • Windows 7-10 (64 bit) and above OR Mac 10.12-10.15
  • 4 GB RAM
  • 1 GB minimum storage space available
  • Intel i5 or AMD A10 (minimum 4 cores)
  • Intel Quick Sync
  • 1024 x 768 screen resolution
  • An up-to-date web browser (or Internet Explorer 11)
  • A Kaltura Capture recording in progress
Caveats
  • Older computers may struggle to record at high resolution
  • While recordings are uploaded to Canvas automatically, they're also stored on your computer, so if you record many videos, you'll eat up a lot of your hard drive space
  • You should reboot your machine and close any applications you aren’t using before starting your recording to ensure that your system is dedicating as many resources as possible to recording your video
  • None

What is Kaltura Capture?

Kaltura Capture is the desktop application that allows you to record up to three sources on your computer, including microphones, cameras, and screens. The Kaltura video player (which plays all videos in Canvas) has enhanced functionality that allows students to select their preferred way of consuming your content, in addition to supporting features like in-player chapters, video hotspots, cuts, playlists, and in-video quizzes, to name a few.

In short, Kaltura Capture allows you to quickly generate videos for your courses in Canvas and has a variety of handy features. With a little bit of preparation and some understanding of its capabilities, you can generate high-quality instructional videos with minimal effort. As with any skill, practice makes perfect. The more you use it, the better you’ll get!

Why Should I use Kaltura Capture?

Given the options that you have for getting videos into your course, what’s different about Kaltura Capture? What advantages does it afford you, given that you could also record on your own or automatically upload a recorded Zoom meeting? Below are some of the main advantages of using Kaltura Capture.

Screen Capture

Nearly everyone has the ability to record video easily through a variety of devices: smartphones, webcams, camcorders, and so on. Most instructional videos, however, often require the use of visual aids, and most instructors have these visual aids on their computers. Our computers, however, don’t have the ability to do video-based “screen captures” by default, compelling users to purchase software (such as Screenflow or Camtasia) to capture their screens. UCSD, however, has partnered with Kaltura to ensure that all appropriate UCSD faculty, staff, and students can create screen capture videos and easily embed them into courses in Canvas.

Ease of Use

Kaltura Capture is also easy-to-use, and takes a lot of the more complex decision-making of video production (bitrate, file type, etc.) out of the equation for you. Using Kaltura Capture will allow you, as an instructor, to easily create instructional material that you may have delivered in-person and embed it relatively promptly into your course. In addition, Kaltura Capture is integrated with UCSD’s instance of Canvas, so when you’re finishing recording, your video will automatically upload, process, and be available in “My Media."

Advanced Player Functionality

When you create a Kaltura Capture video with multiple streams (e.g. your camera and your screen capture), students will have the option to select their preferred way of watching your video. There are three different ways that students can watch a Kaltura Capture video, if the instructor has chosen to record two video streams.

Picture-in-Picture

If you’ve recorded two video streams, viewers can choose picture-in-picture to see a small version of one within the other. Viewers can also toggle which video fills the screen.

An example of Kaltura Player's picture-in-picture view.

Side-by-Side

Viewers can also choose to put two video streams side-by-side, providing each stream with equal width. This can be advantageous if the instructor has recorded two screens, for example.

An example of Kaltura Player's Side-by-Side view of video content.

Single Stream

Lastly, users can elect to prioritize one video stream over another and just watch one of them rather than both simultaneously.

An example of Kaltura Player's single stream view of video content.

Live Annotation

A screenshot of Kaltura Capture's annotations window.During your Kaltura Capture recording, you can display on-screen annotation in real-time (that is, without having to do it retroactively in post-production). Annotation features include the ability to:

  • Draw freehand
  • Add arrows
  • Add on-screen text
  • Highlight mouse clicks
  • Adjust color, position, and size of existing annotations
  • Use an onscreen whiteboard
  • Delete all content on the whiteboard
  • Delete all annotations

If you're interested in learning about how to use these features, check out the section below on using Kaltura annotations.

Pausing recordings

To minimize your need for any editing after your video uploads, you have the ability to pause your recording (and not stop it entirely). This is useful if you have to change onscreen applications or need to stop temporarily (say, if someone enters your recording space).

How to Record Using Kaltura Capture

Recording with Kaltura Capture is fairly easy if you’re ready to record. Read the steps below to find out how.

Launch Kaltura Capture

  • Reboot your computer.
  • Close all software that you won’t be using during your recording.
Failing to reboot and close extraneous software may result in your audio and video becoming out of sync in the final video.
A screenshot of the "Kaltura Capture" menu item underneath "Add New" in Canvas
  • Within Canvas, click on “My Media” in the left navigation.
  • Click on “Add New,” then select “Kaltura Capture.
  • Click on the link appropriate to your computer platform to install Kaltura Capture on your computer.
  • Once the installation is complete, follow the steps above again. This time Kaltura Capture should launch (after your approval).
Note that once the software is installed, you can also just launch Kaltura Capture manually (that is, not through Canvas, but just by opening the application on your computer). It will not change the fact that your video will be uploaded to the “My Media” section of Canvas.

Select your recording preferences

Next you’ll need to indicate what you want to record.

Select what screen you’d like captured.

A screenshot of Kaltura Capture's recording settings window.
  • Click the caret under the screen icon and select what screen you’d like captured.
  • If you only have one screen, there should be only one option.
  • You can elect to capture either your whole screen or just a part of it. If you want to record only part of your screen, click the caret under the screen icon, select the screen you'd like to capture from the pull-down list, and then click the radio button for "Select Area." You'll have several different sizes from which to choose and Kaltura Capture will display a semi-transparent box to give you an idea of how big each box will be. Drag the box around your screen to identify the section of your screen you'd like captured.
  • If you don’t want to capture any screen, click the “screen” icon and it will turn gray with a slash through it.

Select what camera you’d like to use.

  • Click the caret under the camera icon and select what camera (or second screen) you’d like captured.
  • If you only have one webcam, there should only be one option.
  • If you have a second monitor, you can elect to record a second screen rather than your camera.
  • If you don’t want to record any video, click the camera icon and it will turn gray with a slash through it.

Select what microphone you'd like to use.

  • Click the caret under the microphone icon to make your selection.
  • If you want sound from your webcam, select that option.
  • If you have a microphone on your computer and just want to record that, choose that option.
  • If you don’t want to record any audio, click the microphone icon and it will turn gray with a slash through it.

Some additional notes about recorder settings:

  • Kaltura Capture can record from no more than 3 sources. Typically this is your screen, microphone, and camera, but if you’re using more than one screen, you could elect to record two screens and a microphone. Just remember that 3 sources is the maximum - you wouldn't be able to capture 2 screens, your camera, and your microphone.
  • Kaltura Capture will not capture your computer's audio. Any sounds that your computer makes will not be captured. If you play a video on your computer during your recording, for example, it will not have sound in the final product.
  • Your settings can’t be changed once the recording begins. Once you press the red record button, you’re not able to change any of your selections. If, for example, you wanted to stop recording from your camera, you’d need to stop the recording and create a new one.
  • On a Mac, you can capture your iPad screen while using Sidecar. Newer Macs and iPads allow for the use of Sidecar, an application that allows users to use their iPads as an extension of their desktop. If you're using Sidecar with your Mac, your iPad screen will be one of the screens you can select to capture.

Start the Recording

The red record button from the Kaltura Capture recorder
  • Click the red record button. A 3-second countdown will begin indicating when the recording will begin.
  • Wait a second or two after the countdown completes before beginning. Depending on your computer, it can take Kaltura Capture an extra second or two after the countdown to start fully capturing from all of your sources.

Once the Kaltura Capture session has started recording, the application window will shift to a smaller version with modified controls. Note that this recorder window will be visible in your screen capture, though you can minimize or hide it if you wish.

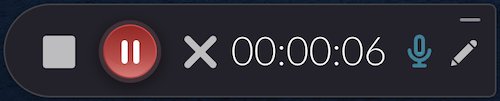

Kaltura Capture's recording bar once a recording has started, demonstrating all the buttons available

The recorder has some clickable elements and a couple non-clickable indicators.

  • The stop button will end your video and prompt you to upload it to Canvas.
  • The pause button will suspend your recording until you press the record button again. Note that if you pause and resume your recording, your viewers will experience a jump cut. That is, the video will continue immediately from the section before you paused to the section where you resumed the recording.
  • The gray X will cancel and delete the recording. Use this only if you truly intend to discard what you’ve already recorded. It will not be recoverable!
  • The timer is not clickable, and indicates how long you’ve been recording.
  • The microphone icon is not clickable, and indicates whether or not you are recording from your microphone. It does not allow you to mute or change your microphone.
  • The pencil icon opens a submenu offering onscreen annotation options. See our article and video on Kaltura Capture annotations if you’re interested in using these.
  • The gray line above the pencil icon will minimize the control window.

An image annotating the active Kaltura Recording, discussing the settings discussed earlier

Stop and Upload Your Recording.

The active Kaltura Capture recorder showing a window asking the user if they want to stop the recording
  • Click the square button to stop your recording.
  • Click “Yes, Stop it” to confirm that your recording is complete.
  • Give your video a title. The title that Kaltura automatically provides probably won’t be useful to you once it ends up in Canvas.
  • Enter a description and tags, if desired. While these fields are optional, however, all of these can be edited later in Canvas (just like the "title" field.)
  • Click “Save & Upload."
Kaltura Capture's "save and upload" window, annotated to indicate required fields and buttons.
To be on the safe side, wait until the video has finished uploading before you close Kaltura Capture. You’ll see a notification pop up that indicates that your upload has completed.

A Kaltura Capture notification indicating that a recording has been successfully uploaded

How to Use Kaltura Capture Annotations

Cognitive psychology research on the use of visual aids in an educative content suggests that there are three main principles to bear in mind (Kosslyn 2007):

  1. Connect with your audience
  2. Direct and hold their attention
  3. Promote their understanding and retention

Using annotations will help you with the last two principles - directing your audience’s attention to salient information, and promoting their understanding and retention of your material. Below you can learn about the various features of Kaltura Capture’s annotations to maximize your students’ engagement and retention.

To use Kaltura Capture’s annotation features, during a recording, click the pencil icon on the right side of the recording bar.

A screenshot of the active Kaltura Capture recorder, with the pencil icon circled.

When you do, the annotation tools menu will appear above the recording bar.

A screenshot of Kaltura Capture's annotations, with almost every icon labeled.

Annotation Features

A screenshot of the pencil icon in the Kaltura Capture annotations menu.

Draw Freehand

The pencil icon within the annotations menu allows you to freehand draw on the screen. You can use your mouse to draw anything you like. Use the color palette to select the desired color of the pen.

A screenshot of the arrow icon in the Kaltura Capture annotations menu.

Draw Arrow

The arrow allows you to, well, draw arrows on the screen. Once it’s selected, click and drag your mouse. Where your mouse begins will be the start of the arrow, and where it ends will be where the actual “pointer” part of the mouse is. You can select the color of the arrow in the color palette.

A screenshot of the text icon in the Kaltura Capture annotations menu.

Type Text

The icon that looks like a capital “T” is the text icon. Once selected, click anywhere on your screen and a text box will be added, allowing you to add text onscreen. Use the color palette to select the desired color of your text. You can also click inside one of your existing text boxes and select a color to change the color of that text.

Note that you have a maximum of 500 characters within text boxes.

A screenshot of the "click" icon in the Kaltura Capture annotations menu.

Highlight Clicks

The icon that looks like a regular mouse cursor (an arrow icon pointing up and to the left) allows you to highlight each of your mouse clicks. When you click your icon on your capture screen, a small yellow circle will radiate outward from where you clicked - kind of like a radar animation. It’s handy for recordings where you click frequently and the locations of your clicks are relevant to your students’ understanding of the material (for example, software tutorials). Note that you can’t change the color of the “radar” effect - it will always be yellow.

A screenshot of the select icon in the Kaltura Capture annotations menu.

Select Object(s)

The icon depicting two perpendicular arrows allows you to select existing annotations and move them. For example, if you have an arrow onscreen already, you can use the select tool to move it around the screen. If you have multiple objects, you can draw a box onscreen around them and all them will be selected.

You can also use the selection tool to enlarge existing annotation objects. When an object is selected, little boxes will appear at the corners as well as midway through each side of the rectangle.

Clicking and dragging the boxes in the corner of the object will change the overall size of the object.

Clicking and dragging the boxes in the midpoints will allow you to visually “squash” the object by changing only the horizontal or vertical dimension separately.

A screenshot of the whiteboard icon in the Kaltura Capture annotations menu.

Create Whiteboard

The rectangular icon under the color palette creates a virtual whiteboard onscreen. When the whiteboard is present, all the other tools will only be usable within the whiteboard. You can’t, for example, select the arrow tool and draw on your screen outside the whiteboard. However, you can use all the other annotation tools - freehand draw, arrows, and text boxes.

A screenshot of the "download whiteboard" icon in the Kaltura Capture whiteboard.

You can also download the contents of the whiteboard to your computer by clicking the icon that looks like a sideways open bracket with a downward arrow above it. It’ll download to your desktop as an image file.

You can click the trash icon in the annotations menu to clear the whiteboard. Note that when the whiteboard is present, clicking the trash icon won’t delete any existing annotations that are outside the whiteboard.

Click the “X” button at the top right of the whiteboard to close it.

A screenshot of the size slider in the Kaltura Capture annotations menu.

Change Object Size

The vertical slider on the right side of the annotations menu allows you to identify in advance how big you want your annotations to be. Move the slider to the top to make it large and to the bottom to make it small.

Note that this tool only works in advance of creating your annotation - you can’t use it to adjust the size of an existing annotation. If you want to adjust the size of an object you’ve already drawn, use the select tool and click and drag a box in the corner of the selection.

A screenshot of the trash icon in the Kaltura Capture annotations menu.

Delete Objects

The trash icon will delete all annotations onscreen. If you’re in the whiteboard, it will only delete the annotations within the whiteboard.

A Note About Accessibility

As we discussed in the preamble above, annotations are a pedagogically useful tool for drawing attention and promoting retention. However, as with all videos produced in an educational context, you must assume that a visually or hearing impaired person will be consuming your video. Using annotations shouldn't replace spoken words that describe what you’re doing. So, be aware of when you’re using annotations and not indicating what you’re drawing in a manner that would be accessible without the visual aid.

References

Kosslyn, S. M. (2007). Clear and to the point: 8 psychological principles for compelling PowerPoint presentations. New York: Oxford University Press.

How to Find Kaltura Capture Video Files on Your Computer

Though your recordings upload to your "My Media" section of Canvas, Kaltura Capture keeps a copy of these files on your computer. Their location is a bit tricky to find, though, so follow the instructions below if you for some reason need to access your recording files.

Windows (Option 1)

  • Right click on the Kaltura Capture icon on the desktop and select "Properties."
  • Click the "File Location" button in the Properties window. This will open the BIN folder, which is a level deeper than you need.
  • In the file path bar, go up one folder to the Capture folder, then open the Recordings Folder.

Windows (Option 2)

  • Copy/paste the following into the search bar, substituting your Windows username for [username]:
    C:\Users\[username]\AppData\Local\Kaltura\Capture\Recordings
    Note that you can identify your Windows username is to open the folder C:\Users and see if you see a familiar username. Alternatively, you can open the Start Menu, select "Settings," and then "Account."
  • Sort the list by "Date Modified" so that you can group all the files for each recording together.

Mac

  • Open Finder and select "Go" at the top of your screen.
  • Select "Go to Folder" from the list.
  • Copy and paste the following into the text box that opens:
    ~/Library/Preferences/Kaltura/Capture/Recordings
  • Sort the list by "Date Modified" so that you can group all the files for each recording together. To do so, click the "Date" or "Date Modified" column heading in the file view to sort the list.

About Your Kaltura Capture Files

The files associated with each Kaltura Capture recording look like gibberish, as you can see in the screenshot below.

A screenshot of the "recordings" folder where Kaltura Capture recording files are listed.

File Types and Descriptions

  • .mp4 files are the recordings. If you recorded two sources (e.g. screen and webcam), there will be two .mp4s. You can play them locally on your computer to figure out what each video is.
  • "Slides" folders exist if you ran a PowerPoint presentation in presentation mode during your recording. Note that if you have folders like these, it means that Kaltura created chapter markers for your video.
  • .json files contain the media upload parameters for Kaltura Capture.
  • .jpg files are the thumbnails for your videos that Kaltura generated.

We strongly recommend against deleting or renaming any files in your "Recordings" folder. The recommended method of deleting Kaltura Capture recordings is by using the Kaltura Capture Application Library Viewer (that you can access via the "Manage" link in the Kaltura Capture recording bar), but make sure they are in your "My Media" in Canvas and working as expected first.

Need additional help with videos? Contact the Multimedia Services team at kaltura@ucsd.edu.
